D Shackle With Captive Pin 316 Stainless Steel

Buy any two or more and get 10% off

316 grade stainless steel shackle. Designed for marine use

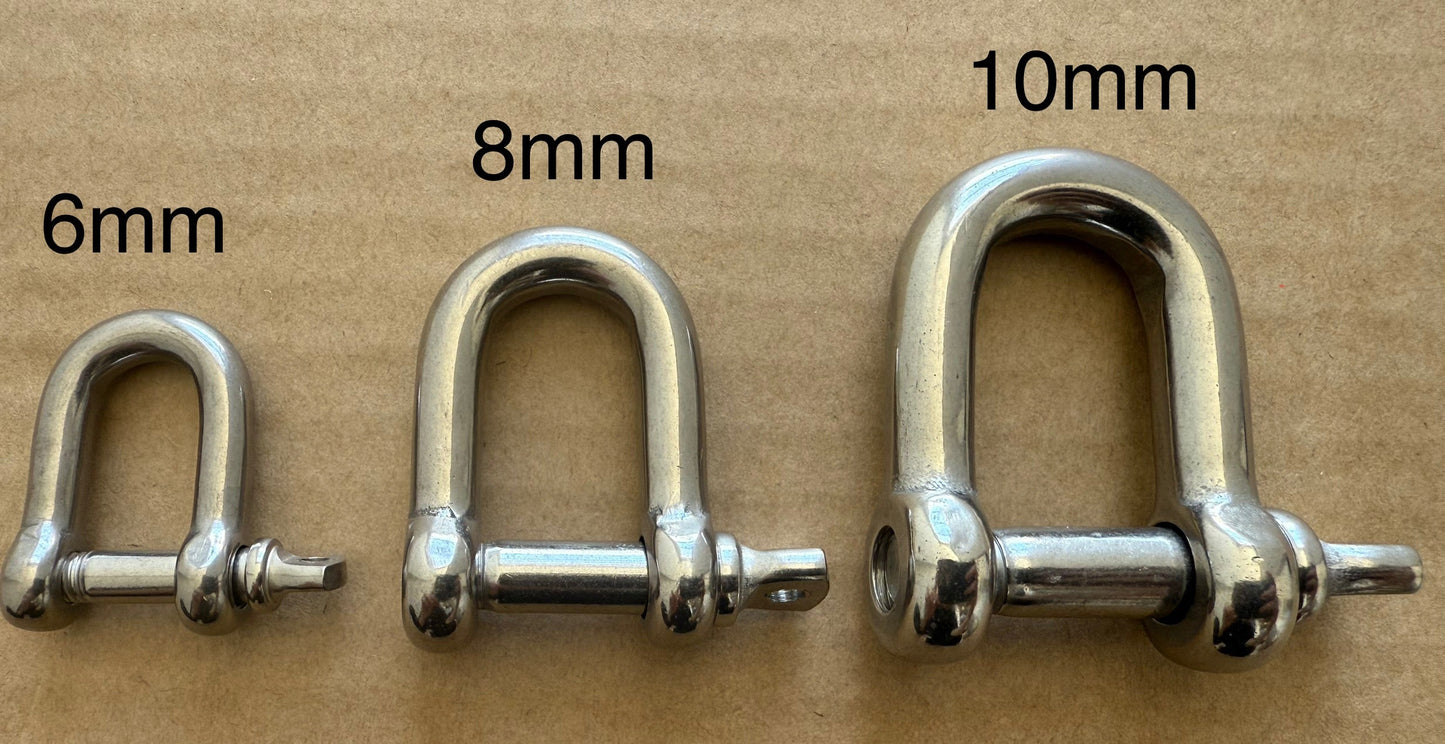

Available in three sizes:

6mm (1/4")

• Breaking load 1800kg.
• A Inside length from centre of pin to underside of D is 24mm.

• B Inside width is 12mm.

• C Pin diameter and thickness of D is 6mm.

• Weight 24 grams each

8mm (5/16")

• Breaking load 2900kg.
• A Inside length from centre of pin to underside of D is 32mm.

• B Inside width is 16mm.

• C Pin diameter and thickness of D is 8mm.

• Weight 58 grams each


10mm (13/32")

• Breaking load 4700kg.
• A Inside length from centre of pin to underside of D is 40mm.

• B Inside width is 20mm.

• C Pin diameter and thickness of D is 10mm.

• Weight 108 grams each
