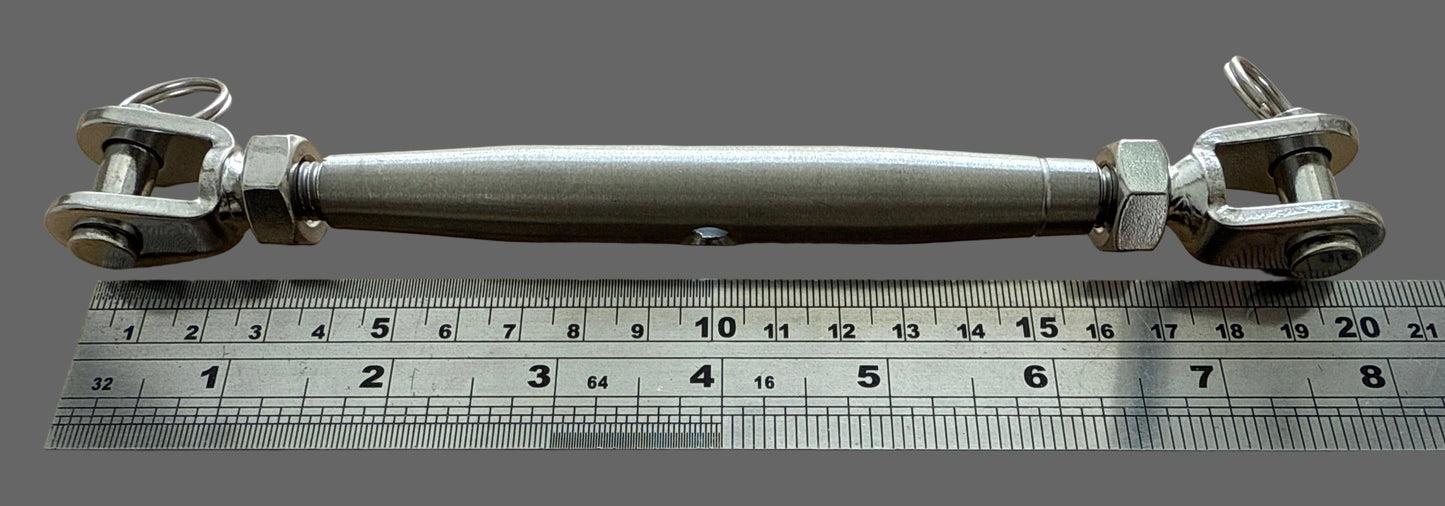

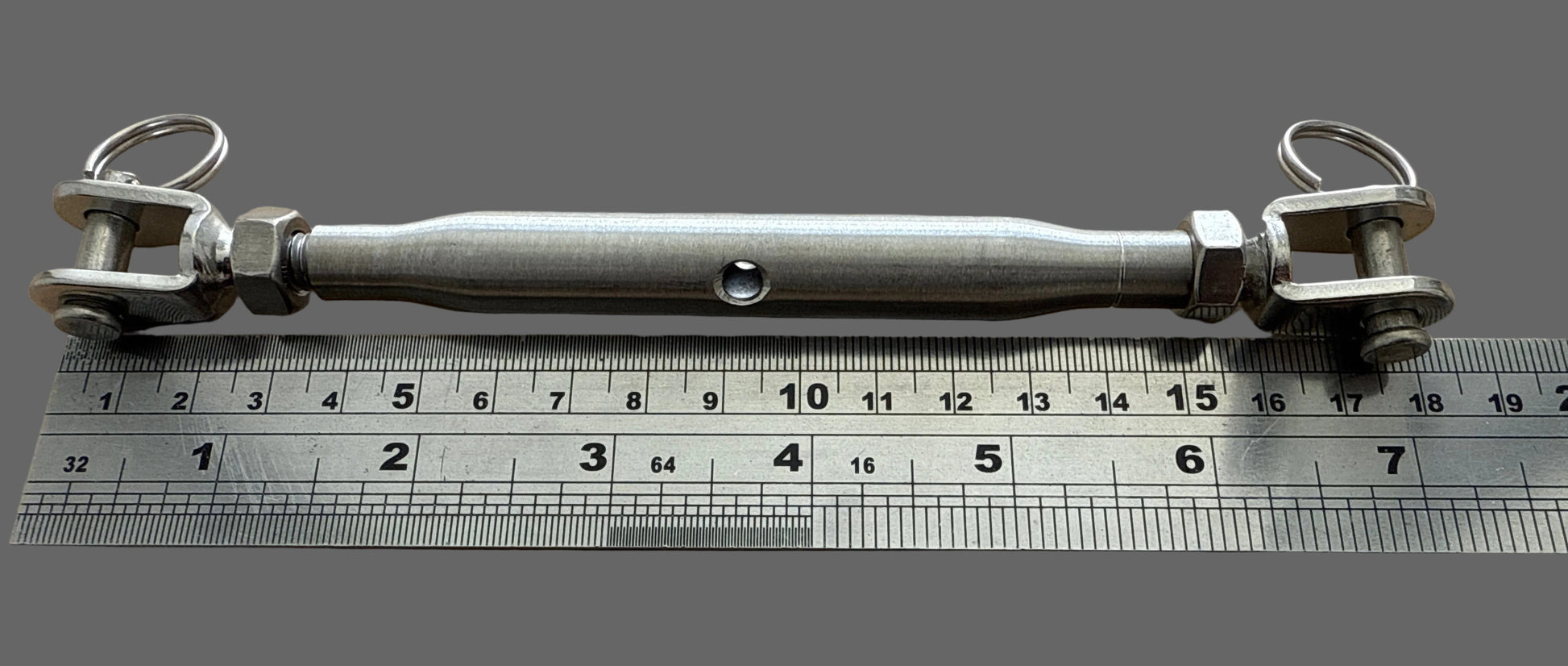

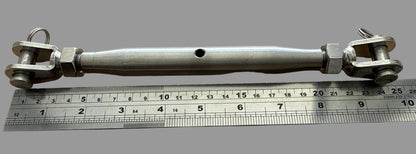

Rigging Screw - Turnbuckle Bottlescrew 316 Stainless Steel

Fork & Fork ends, sometimes referred to as Jaw & Jaw. With a closed body. This style of rigging screw has a Fork with a pin on each end. This is often more practical than the more common Eye style as there is no need to use a shackle to attach something to it. One simply uses the Fork and pin in place of the shackle.

The closed body also enhances the look and is less likely to become entangled with loose warps and lines.

Locking nuts ensure that once the required length has been selected the Fork threads can be secured.

316 grade stainless steel

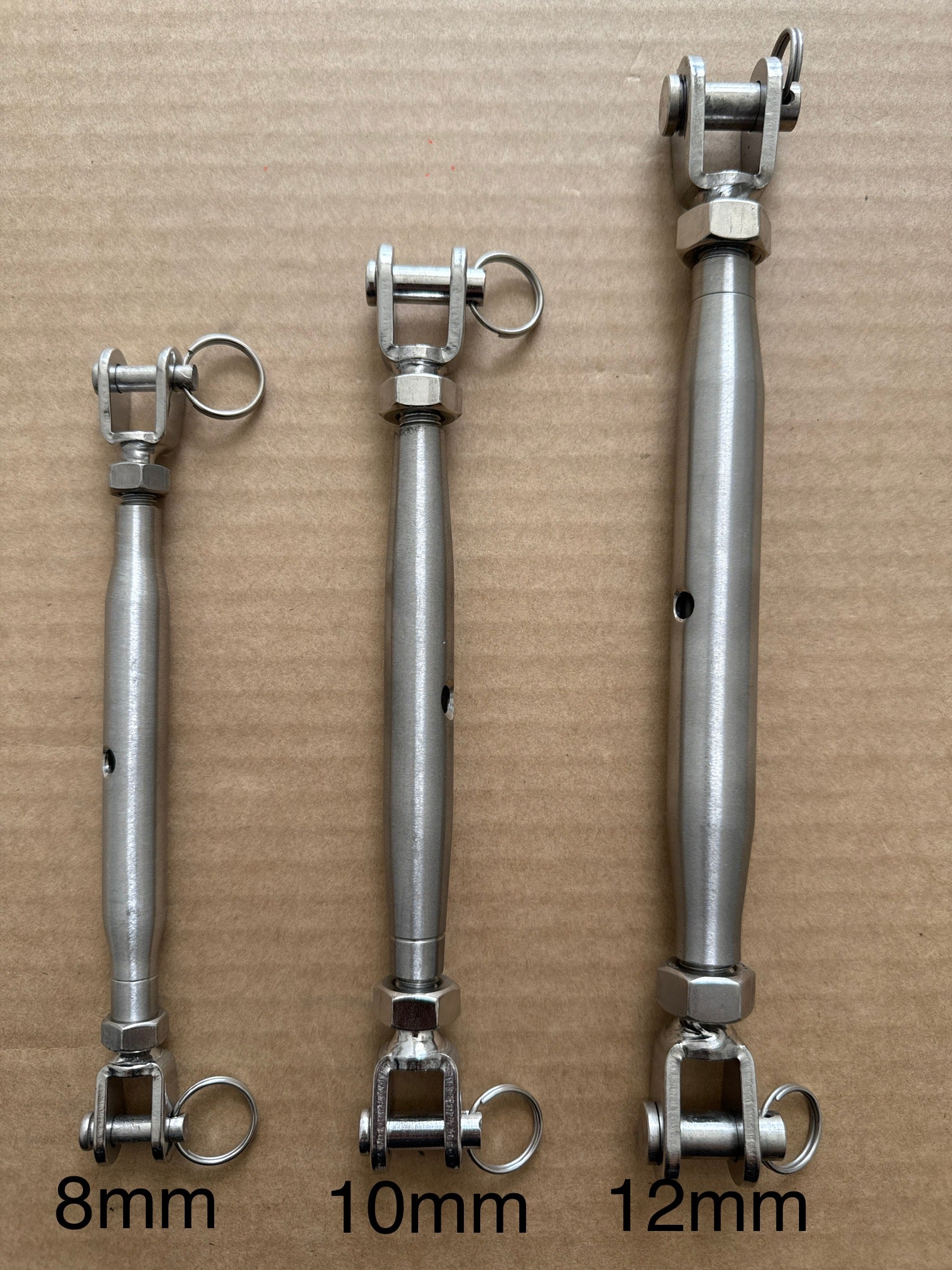

Available in different thread diameters:

Thread diameter 6mm
Breaking load 1500 kg

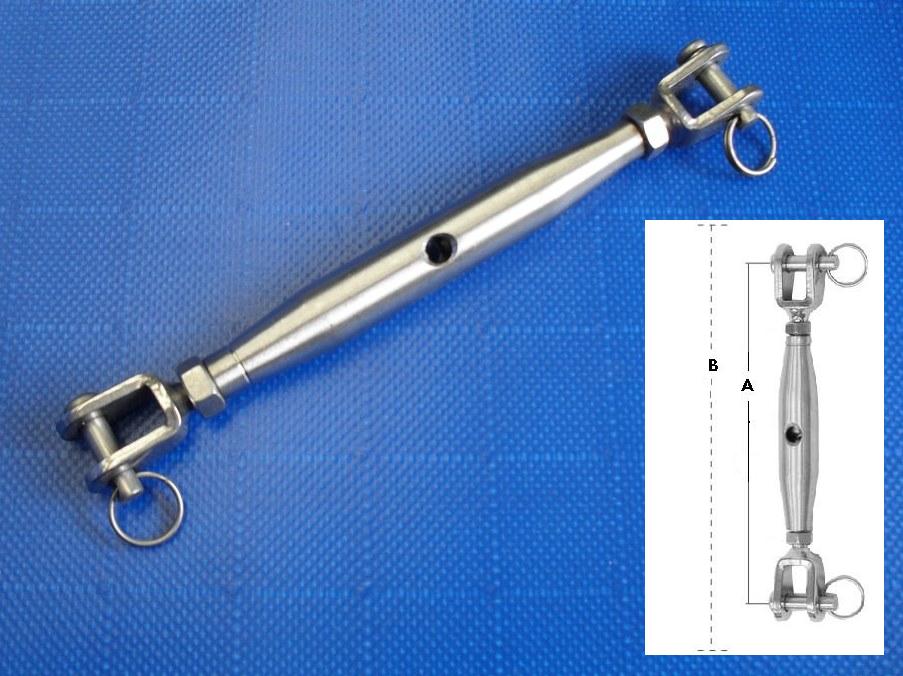

Overall length when closed, pin to pin 140mm. A
Overall length when open, pin to pin 210 mm. B
Pin diameter 5mm
Width between jaw 9mm
Weight 81 grams

Thread diameter 8mm
Breaking load 3000 kg
Overall length when closed, pin to pin 165mm. A
Overall length when open, pin to pin 240 mm. B
Pin diameter 6mm.
Width between jaw 11mm
Weight 134 grams

Thread diameter 10mm
Breaking load 4300 kg
Overall length when closed, pin to pin 190mm. A
Overall length when open, pin to pin 270 mm. B
Pin diameter 8mm
Width between jaw 11.5mm
Weight 216grams

Thread diameter 12mm
Breaking load 6500 kg.
Overall length when closed, pin to pin 245mm. A
Overall length when open, pin to pin 360 mm. B
Pin diameter 10mm.
Width between jaw 14mm
Weight 412 grams
