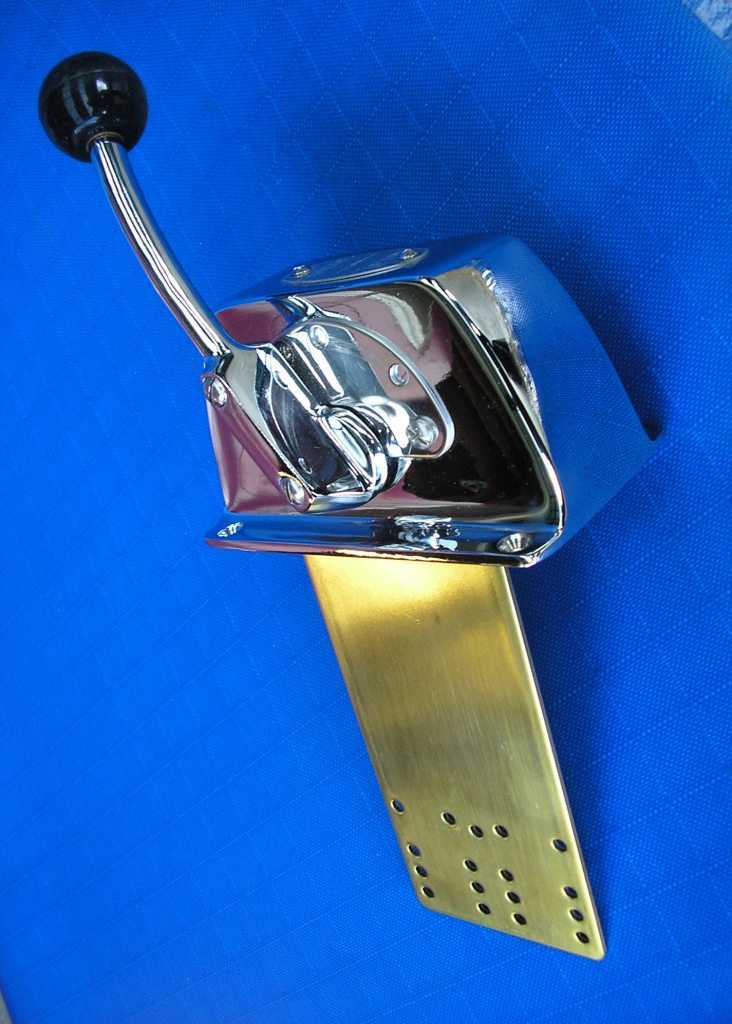

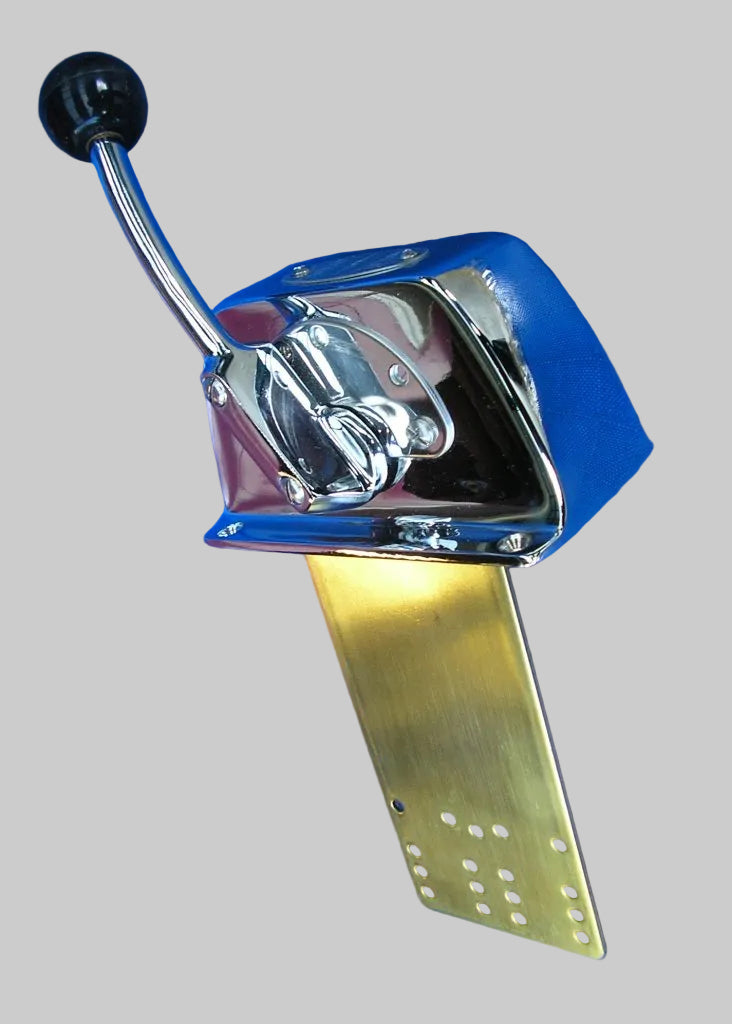

Marine Engine Control Lever Top Mount Single

Robust traditional top mount single lever control for inboard motors. Designed for use with Morse type cables. Can be used for either throttle or gear shift. Main body is chrome plated brass. Positive locating ball catch on full ahead, full astern and neutral.

Oval plate on top shows ahead / astern. Plate can be placed either way to allow handle on left or right of unit. Alternatively plate can be turned over to show a blank surface.
Complete with four 38mm stainless mounting machine screws. Comes with two sets of brass cable clamps and screws.

Mounting plate length 133mm
Mounting plate width 79mm
Mounting hole centres; 110mm & 65mm
Height above dash excluding handle; 75mm
Handle height above dash; 170mm
Depth below dash required for cable mounting plate; 165mm
Weight 1.7 kilos

Part no; 10132 C
